High Speed Lens Lapping Machine

THP600型

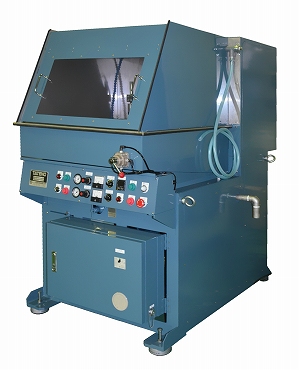

This is the 1-axis lapping machine suitable for high accuracy lapping of large lenses and plates for lapping.The rotating speed of countersunk axis and Kanzashi stroke are controlled by inverter, enabling selection of optimum conditions.※The photograph shows the custom-made, full covered machine.(For standard specifications, please refer to the PDF catalog.)

>>Downloading PDF of Products’ Specifications

Products Overview

Model THP600
No. of countersunk axes 1 axes/shafts
Maximum disk diameter 約φ600
Tip shape of countersunk axis According to the instructions of users (taper, adapter, screw type)
Rotating speed of countersunk axis 50Hz 8～50rpm 60Hz時 increased by 1.2%
Rotating speed of Kanzashi 50Hz 0～20rpm 60Hz時 increased by 1.2%
Swinging width of Kanzashi 0〜500mm(On the passing line of countersunk axis)
Kanzashi Locus Arch motion
Pressurize force of Kanzashi Air pressurize (1 step method)
Timer According to the instructions of users(30-minute timer)
Motor for countersunk axis 1.5kW 4P 3相 200V
For Kanzashi 0.75kW 4P 3相 200V
Lapping/grinding water pump 100W 200V×1 unit
Physical Dimensions of Equipment Width x Depth x Height Depending on model
重量 Depending on model
