Fully Automatic Centering Machine

TCH-3W-TL5型

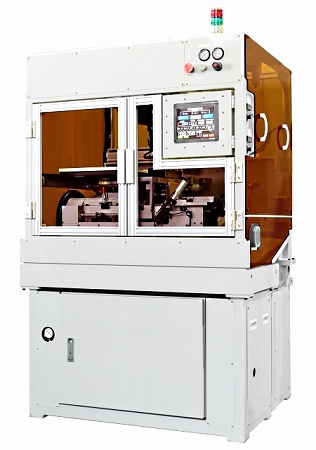

It is the horizontal type automatic centering machine that performs processing of outer circumference and slope removal of lenses of digital cameras, car-mount cameras and security cameras as well as flat glasses.Workpieces are transported by XY robot and processed by [fully automatic] operation.Smaller footprint achieved by allocating stocker at upper part of the machine.Also incorporated with manual functions, processing of workpiece sizes that cannot be handled by automatic loading system is available.

>>Downloading PDF of Products’ Specifications

Products Overview

Model TCH-3W-TL5(Dedicated to Round Processing)
Applicable Lens Diameter 自動 φ3.0〜φ40/手動 φ3.0〜φ105
Grinding/Lapping Stone Diameter/Rotating Speed φ160/Max.4,800rpm/0.75kw
Travel Stroke in Direction of Grinding/Lapping Stone Diameter AC Servo Motor 100mm(X-Axis)...加工常用ストローク 20mm
Travel Stroke in Direction of Grinding/Lapping Stone Axis AC Servo Motor ストローク 15mm(Y-Axis)
Rotating Speed of Workpiece Axis 1〜26rpm
High Speed Automatic Centering Mechanism Max.930rpm
Auto Loader Loading Time:8秒
Touch Panel Size 8.4インチ
Required Pneumatic Supply 0.4MPa or above
Required Power Supply AC200V φ3 / 3.3KVA
Physical Dimensions of Equipment Width x Depth x Height 1,100(W) x 855(D) x 2,087(H)
