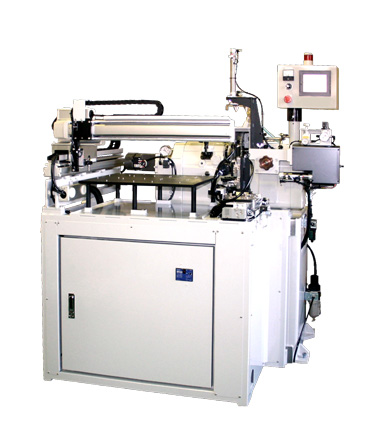

High Rigidity Fully Automatic Centering Machine

TCH-2KS-TL3型

It is the horizontal type automatic centering machine suitable for processing of car-mount lenses made of hard material with high load.The measures are taken to solve the problem of chipping due to the unique shape of car-mount lenses.It performs processing of outer circumference and slope removal of lenses and flat glasses. Workpieces are transported by XY robot and processed by [fully automatic] operation.It is capable of processing not only round shape but also different-shaped workpieces by simply selecting pictorial figure and entering numeral at touch panel.

>>Downloading PDF of Products’ Specifications

Products Overview

Model TCH-2KS-TL3
Applicable Lens Diameter φ3.0〜φ40
Grinding Stone/Rotating Speed φ160 / Max.4,800rpm Inverter
Travel Stroke in Direction of Grinding/Lapping Stone Diameter AC Servo motor 100mm(X-Axis)...加工常用ストローク 20mm
Travel Stroke in Direction of Grinding/Lapping Stone Axis AC Servo motor ストローク 15mm(Y-Axis)
Rotating Speed of Workpiece Axis AC Servo motor 0.6~600rpm/1〜1,000rpm(Select) Centering・・・Max.1,200rpm
Auto Loader XY Robot Flat Placed Pallet Method
Required Pneumatic Supply 0.5MPa
Required Power Supply AC200V φ3 / 4.65KVA
Physical Dimensions of Equipment Width x Depth x Height 1,435(W) x 1,050(D) x 1,600(H)
