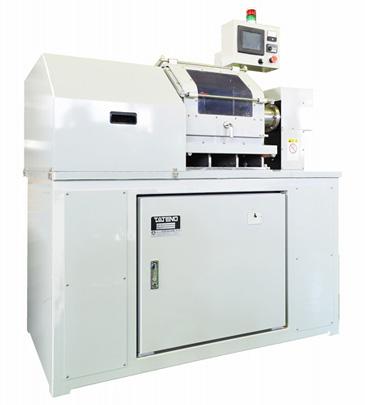

Flat Glass Outer Circumference Polishing Machine

BRS-01型

It is the horizontal type manual processing machine capable of mainly polishing outer circumference and slope removal section of cover glasses for smart phones at the same time by synchronized operation of workpiece axis and brush mounted axis.The number of stackable workpieces at one time is associated with the thickness of workpiece.Lapping of round, rectangle/square, polygon and oval shapes are available as the standard specification.

>>Downloading PDF of Products’ Specifications

Products Overview

Model BRS-01
Axis configuration grinding/lapping stone, coolant related (centrifugal, filter, pump, tank) thickness measurement, spare cassette, conversion parts kit
Control Method PLC AC Servo Motor (Sequencer Control)
Processing Size Max.Max. Swing Diameter Sheet Thickness:φ220 (≒7") 板厚:0.7〜3mm Stackable Capacity:100mm
Processing Shapes Round, Rectangle/Square, Polygon (Octagon or less sides), Oval
Rotating Speed of Main Axis 1〜1,000rpm
Required Pneumatic Supply 0.5MPa
Required Power Supply AC200V φ3
Physical Dimensions of Equipment Width x Depth x Height・重量 1,350(W) x 900(D) x 1,800mm(H) 550Kg
